The Difference Between Bottle Washing Machines and Negative Ion Air Dust Removal Machines

What Is a Bottle Washing Machine?

A Bottle Washing Machine is an automated cleaning system designed to wash the inside and outside of bottles using water, purified water, air, or cleaning solutions before the filling process.

These machines are widely used in industries where bottles require deep cleaning or sterilization before product filling.

Main Functions of Bottle Washing Machines

• Remove dust, particles, and residues
• Wash bottles with water or cleaning liquid
• Sterilize containers in some applications
• Dry bottles using air blowing systems
• Ensure compliance with hygiene standards

•

• What Is a Negative Ion Air Dust Removal Machine?

  A Negative Ion Air Dust Removal Machine is a dry cleaning system that uses ionized air and high-pressure airflow to remove static electricity and dust particles from bottle surfaces.

  Unlike traditional bottle washing machines, negative ion air cleaning systems do not use water or liquid. Instead, they neutralize static electricity that causes dust to cling to plastic or lightweight containers.

  These machines are especially effective for PET bottles, plastic jars, cosmetic containers, and electronic packaging.

  Main Functions of Negative Ion Air Dust Removal Machines

  • Eliminate static electricity
  • Remove fine dust particles
  • Clean bottles without water
  • Reduce contamination before filling
  • Improve cleanliness in dry production environments

  •

  • Working Principle Comparison

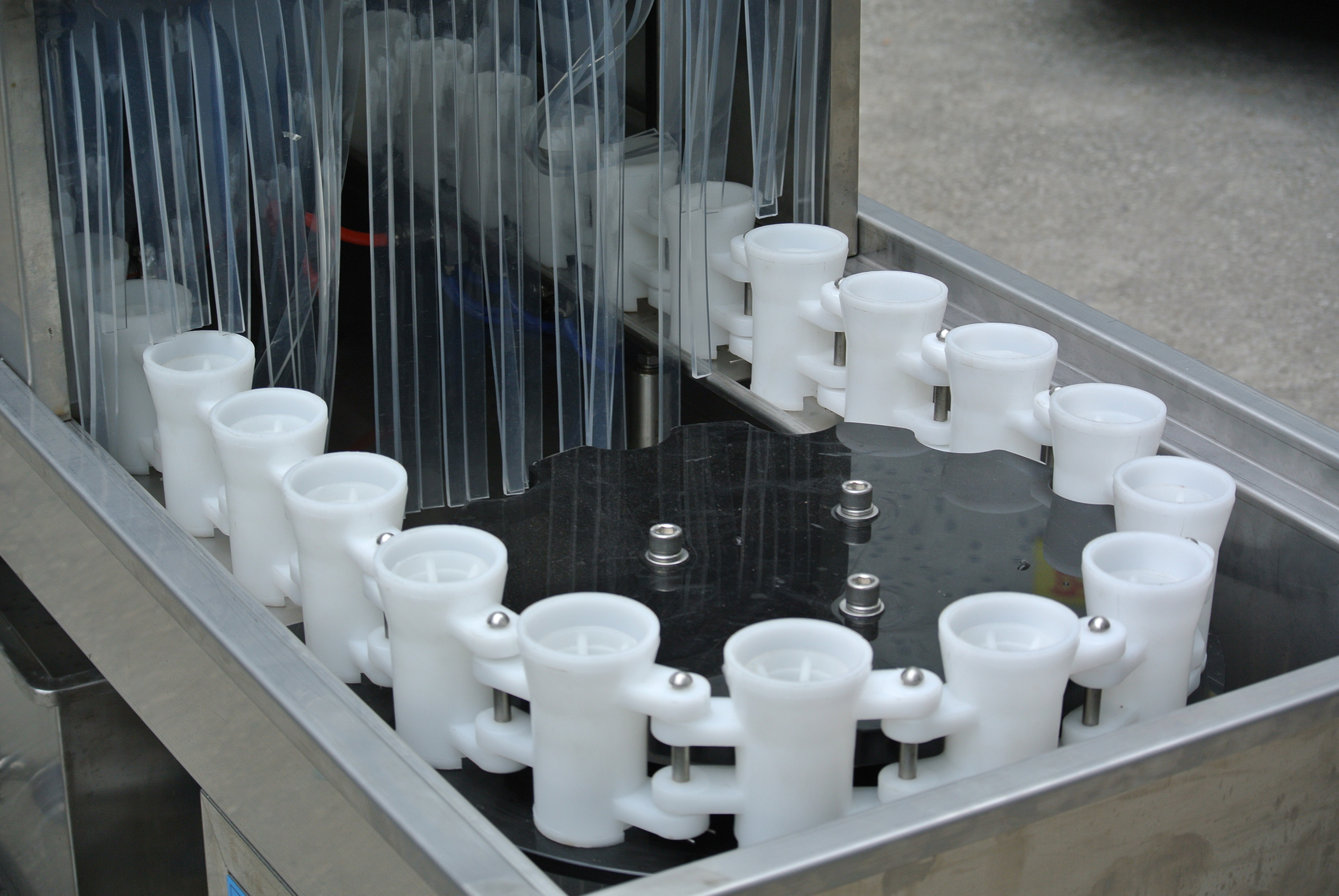

    How Bottle Washing Machines Work

    Bottle washing machines generally operate through the following process:

    1. Bottles enter the machine via conveyor
    2. Bottles are positioned or inverted
    3. Water, purified water, or air is sprayed inside the bottle
    4. Contaminants are flushed out
    5. Excess water is drained
    6. Air drying or sterilization may follow
    7. Clean bottles move to filling equipment

    This method physically removes contamination through rinsing and flushing.

  • How Negative Ion Air Dust Removal Machines Work

    Negative ion air dust removal machines work differently:

    1. Bottles enter the cleaning area
    2. Ion bars release negative ions
    3. Static electricity on bottle surfaces is neutralized
    4. High-pressure air blows away loose dust
    5. Vacuum suction may collect particles
    6. Bottles proceed directly to filling

    This method focuses on static elimination and dry dust removal.

  • Key Differences Between Bottle Washing Machines and Negative Ion Air Dust Removal Machines



    Feature	Bottle Washing Machine	Negative Ion Air Dust Removal Machine
    Cleaning Method	Water or liquid washing	Ionized air cleaning
    Water Usage	Yes	No
    Static Removal	Limited	Excellent
    Bottle Drying Required	Usually yes	No
    Suitable for Wet Cleaning	Yes	No
    Suitable for Plastic Bottles	Moderate	Excellent
    Cleaning Depth	Deep internal washing	Surface dust removal
    Production Environment	Wet process	Dry process
    Maintenance	Higher	Lower
    Energy Consumption	Moderate to high	Lower
    Best For	Glass bottles, pharma, food	PET bottles, cosmetics, lightweight containers

    Advantages of Bottle Washing Machines

    1. Deep Cleaning Capability

    Bottle washing machines can remove:

    • Oil residue
    • Sticky contamination
    • Glass debris
    • Powder particles
    • Manufacturing residues

    This makes them suitable for pharmaceutical and food industries.

    2. Suitable for Sterile Production

    Many bottle washing systems can integrate with:

    • Sterilization tunnels
    • UV systems
    • Hot air drying
    • Cleanroom production lines

    This helps manufacturers meet GMP standards.

    3. Ideal for Reusable Containers

    Reusable glass bottles often require intensive washing and rinsing, which dry air systems cannot achieve.

    ---

    Advantages of Negative Ion Air Dust Removal Machines

    1. No Water Consumption

    These systems operate entirely with ionized air, making them environmentally friendly and cost-efficient.

    2. Excellent Static Elimination

    Plastic bottles often attract dust due to static electricity. Negative ion systems neutralize static charges effectively.

    3. Faster Production Speed

    Since there is no washing or drying process, production efficiency is significantly improved.

    4. Reduced Risk of Secondary Contamination

    Without water residue, bottles can move directly to filling, reducing bacterial growth risks.

    5. Lower Operating Costs

    Compared with water washing systems, negative ion air cleaners typically require:

    • Less maintenance
    • Lower energy consumption
    • No water treatment system
    • No drainage management

    • How to Choose Between the Two Machines

      Choosing the right cleaning system depends on several factors.

      Choose a Bottle Washing Machine If:

      • Bottles contain oil or heavy contamination
      • Deep internal washing is required
      • Your industry has strict hygiene regulations
      • You process reusable bottles
      • Water cleaning is acceptable

      • Choose a Negative Ion Air Dust Removal Machine If:

        • Bottles mainly contain dry dust
        • You use lightweight PET bottles
        • Static electricity is a major issue
        • You need high-speed production
        • You want a water-free cleaning process

        • Can Both Machines Be Used Together?

          Yes. In many modern automated packaging lines, manufacturers combine both technologies for maximum cleanliness.

          For example:

          1. Bottle washing machine performs deep cleaning
          2. Drying system removes moisture
          3. Negative ion air cleaner eliminates static dust
          4. Filling machine completes packaging

          This combination is especially common in high-end pharmaceutical and cosmetic production lines.

        • Future Trends in Bottle Cleaning Technology

          Modern packaging manufacturers are increasingly focusing on:

          • Water-saving cleaning systems
          • Smart automation
          • Energy-efficient equipment
          • Cleanroom-compatible designs
          • AI inspection systems
          • High-speed integrated packaging lines

          Negative ion air cleaning technology is becoming more popular due to environmental concerns and demand for dry cleaning solutions.

          Meanwhile, advanced bottle washing systems continue evolving with better sterilization and automated CIP (Clean-In-Place) functions.

        • Conclusion

          Both bottle washing machines and negative ion air dust removal machines play important roles in modern packaging production lines, but they serve different purposes.

          Bottle washing machines are ideal for deep cleaning and sterilization, especially in pharmaceutical, food, and heavy-duty cleaning applications.

          Negative ion air dust removal machines are designed for dry dust removal and static elimination, making them highly suitable for plastic bottles, cosmetic packaging, and high-speed production environments.

          By understanding the differences between these two techno



          logies, manufacturers can select the most suitable cleaning solution to improve product quality, reduce contamination risks, and optimize production efficiency.
