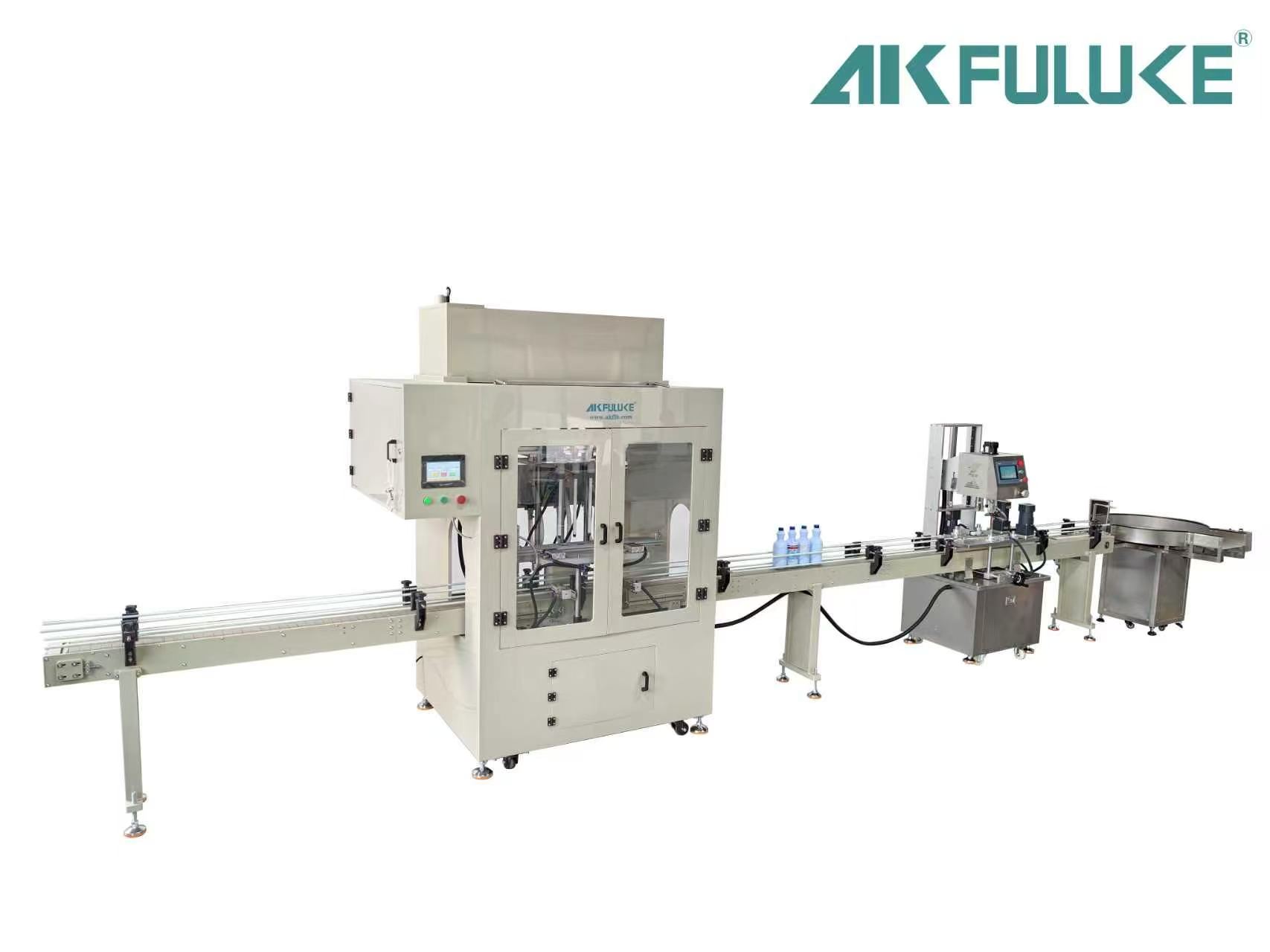

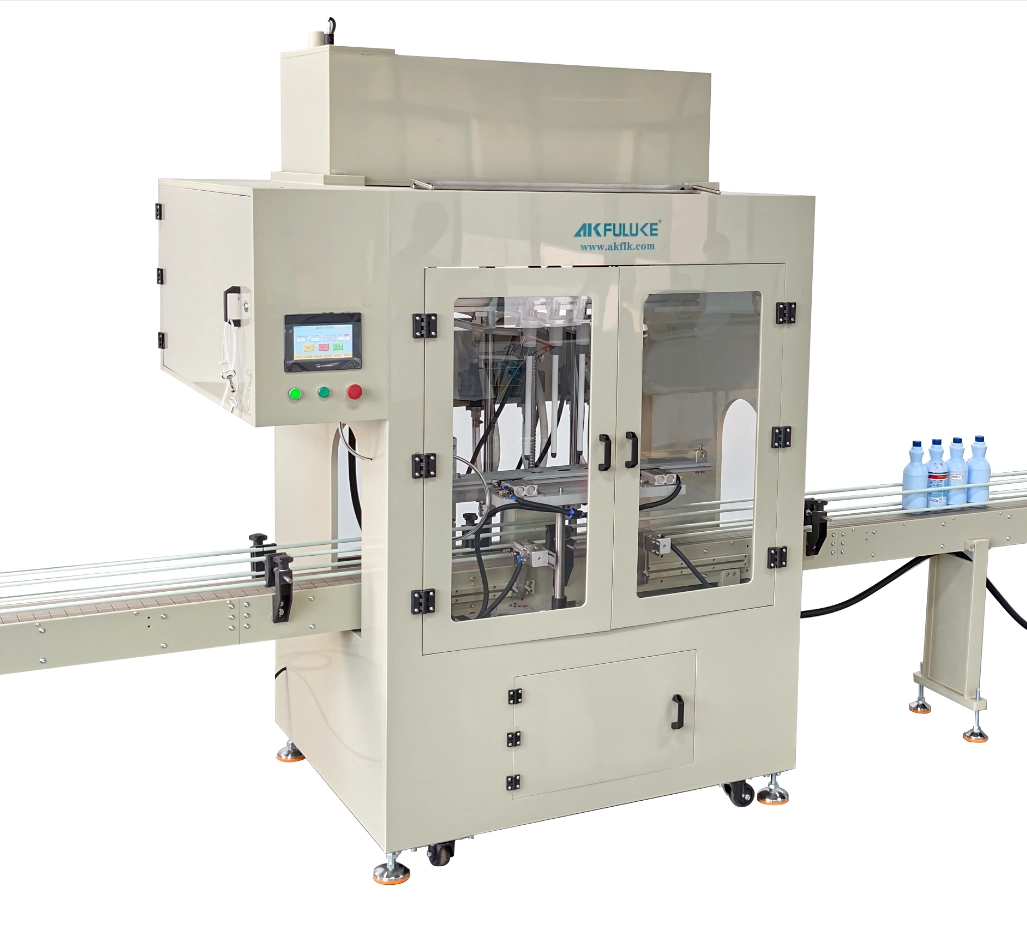

Automatic Acid Chemical Plastic Bottle Capping Anti Corrosion Bleach Filling Machine
This machine is specifically designed for filling highly corrosive liquids such as acids, alkalis, disinfectants, and pesticides. Wetted parts are constructed from corrosion-resistant materials like PTFE and PP, while fluoroelastomer seals prevent leakage and corrosion. Equipped with an intelligent PLC control system and a gear pump for precise metering, it accommodates various plastic bottles and containers. The machine features an overall anti-corrosion design and supports submerged filling to minimize foaming; it is easy to disassemble and clean, making it ideal for production lines in the personal care, fine chemical, and disinfectant industries. It offers stable, durable performance and safe operation.
Automatic Anti-corrosion Filling Machine: Key Features
Product Details
Machine Specifications
| Material | High-quality PTEE polytetrafluoroethylene/PVC | ||
| Filling Range | 500~4000ml（filling range can be adjustable） | ||
| Number of Filling Nozzles | Customizable | ||
| Main Components | The automatic filling machine consists of hopper, chain conveyor belt, an electric eye, servo system, metering device, control system, electrical components, etc. | ||
| Filling Speed | 20-50 bottles/minute, depending on the number of filling nozzles and filling capacity. | ||
| Applicable Bottle Size | It can be customized according to bottle samples | ||
| Customization | Available in various filling volume, bottle size, designs, function and branding options | ||
| PLC Control System | Siemens or others | ||
General Application
Machine Advantages
Customization Options
Packaging & Logistic
Anti Corrosion Filling Machine Videos
Frequently Asked Questions
Corrosion-resistant filling machine
Is cleaning the machine difficult? Will material residue in the piping cause corrosion?
The hopper, piping, and filling head support tool-free, quick disassembly and can be cleaned simply by rinsing with water; there is no accumulation of residue, which minimizes the risk of corrosion and clogging.
Will filling high-foaming liquids cause splashing or overflow?

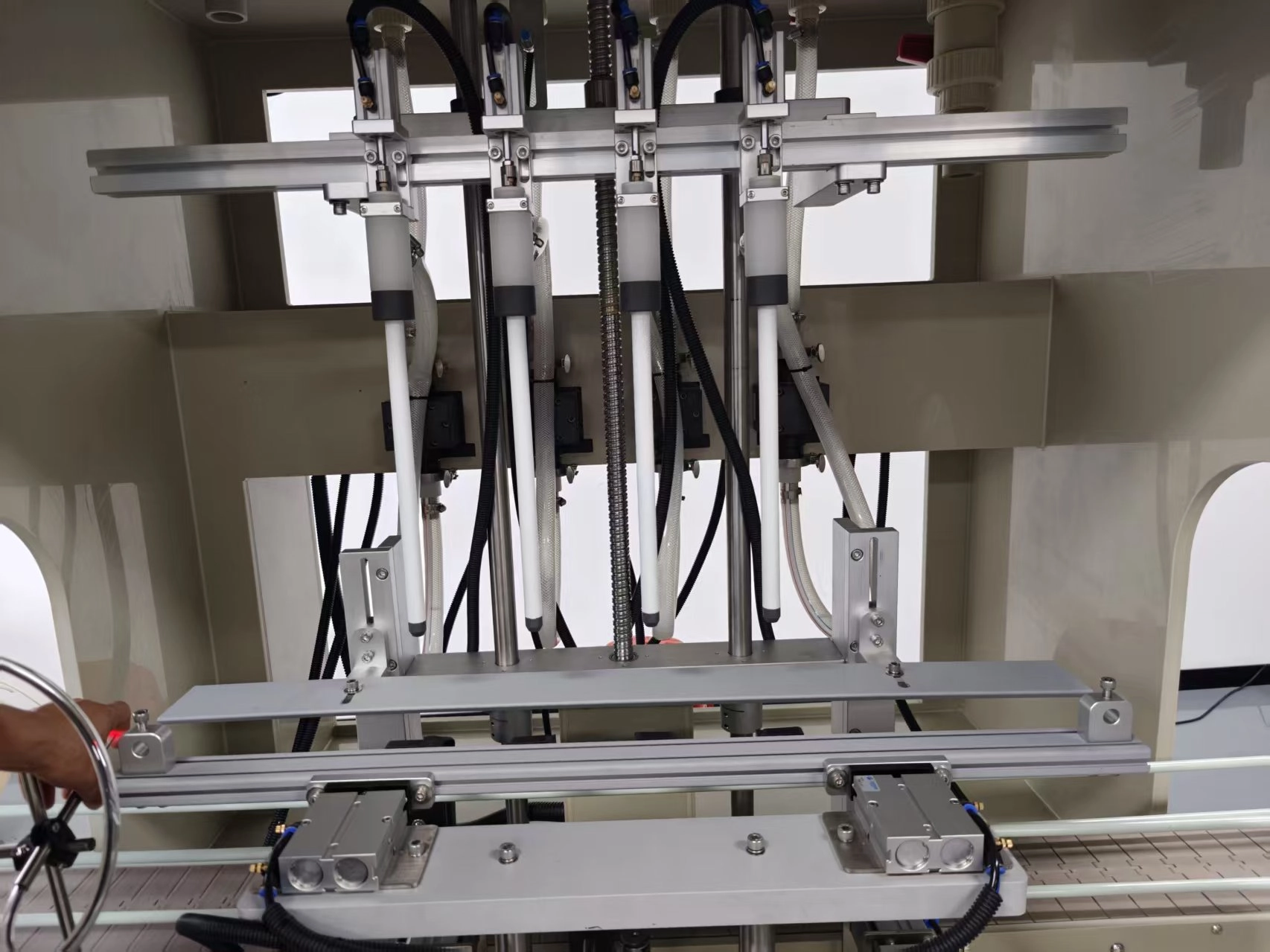

It is equipped with a submerged filling nozzle that dispenses liquid below the surface level, effectively preventing foam formation and splashing, thereby avoiding corrosion of the machine body.
What types of corrosive materials can this filling machine handle?
It can fill various corrosive liquids, such as bleach, hypochlorous acid, disinfectants, concentrated fruit acids, electroplating solutions, food-grade acetic acid, liquid pesticides, electrolytes, food-grade rust removers, and pharmaceutical disinfectants.
What materials are used for the parts that come into contact with the media?
The parts in contact with the media are made of PP, PTFE, and fluoroelastomer; they are resistant to strong acids and alkalis and are not easily corroded or damaged by the chemical fluids.
What is the filling accuracy? Is the margin of error significant?
It utilizes servo-driven quantitative control; standard filling accuracy is within ±1%, ensuring consistent batch filling volumes and reducing raw material waste.
