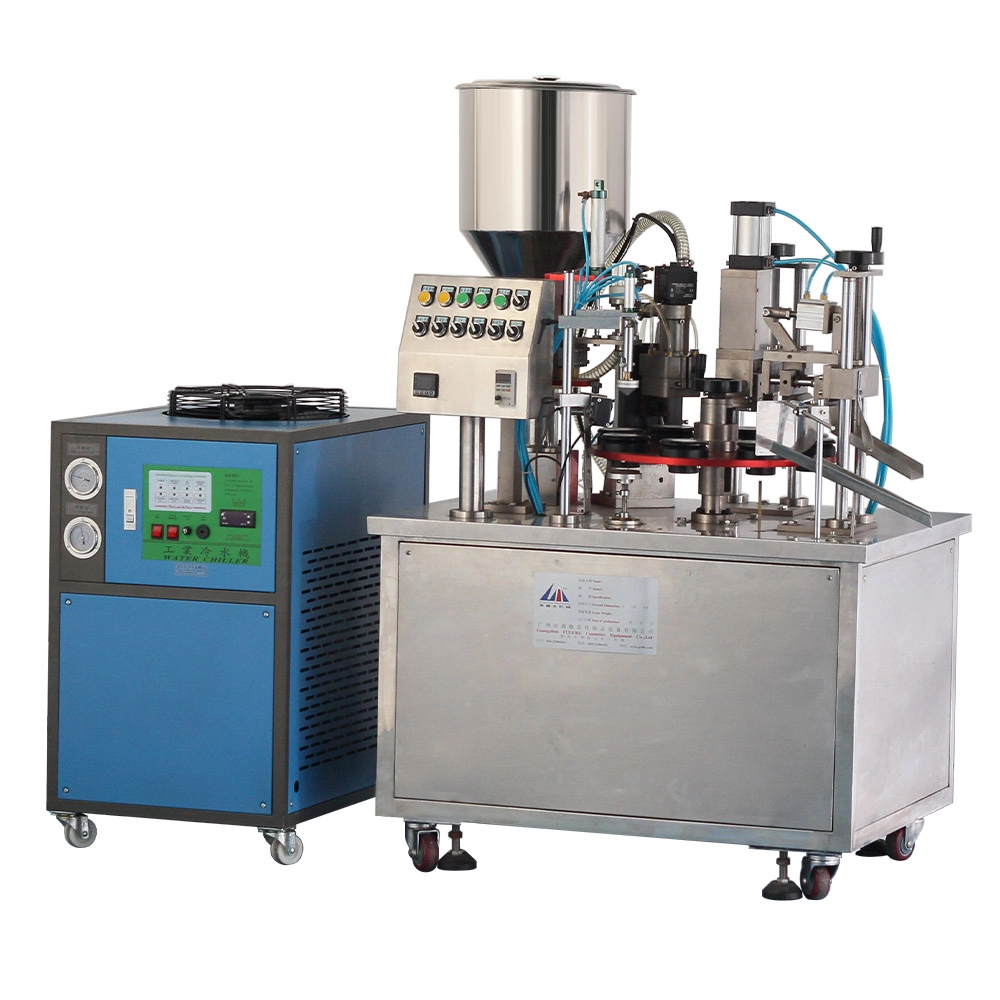

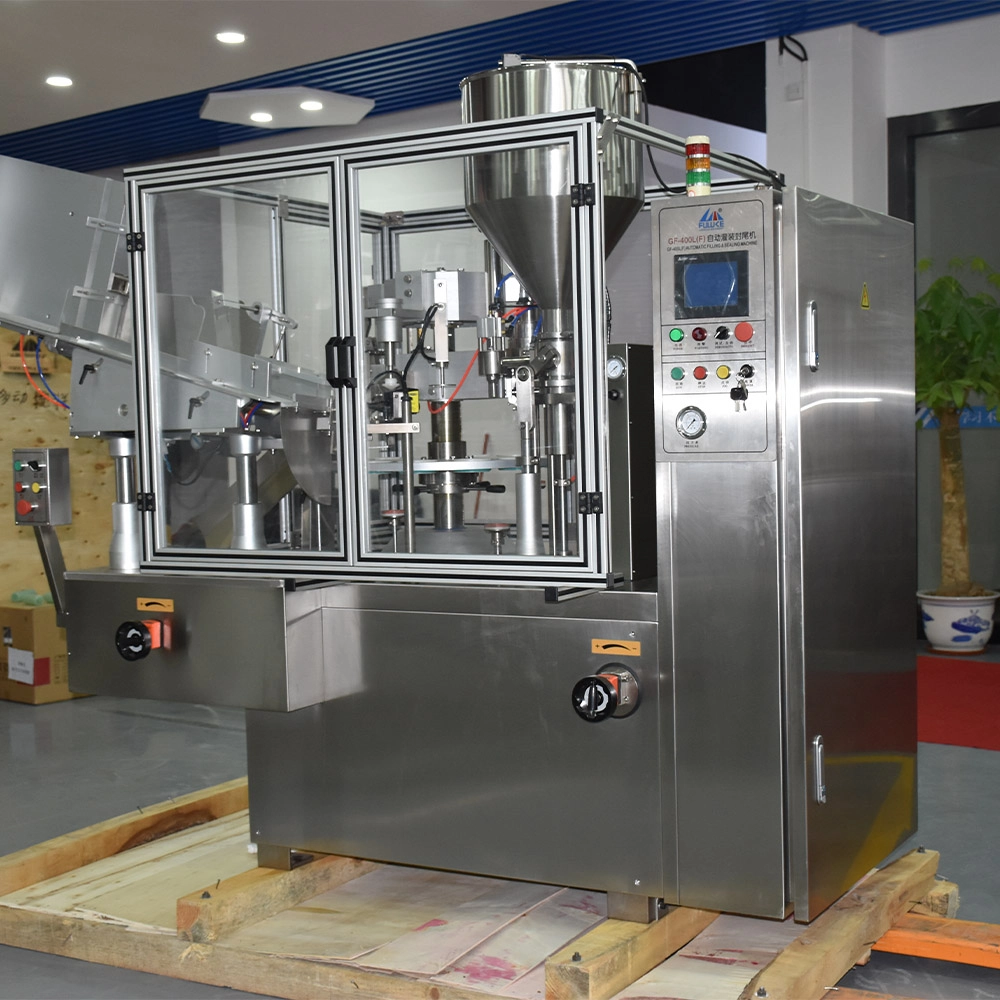

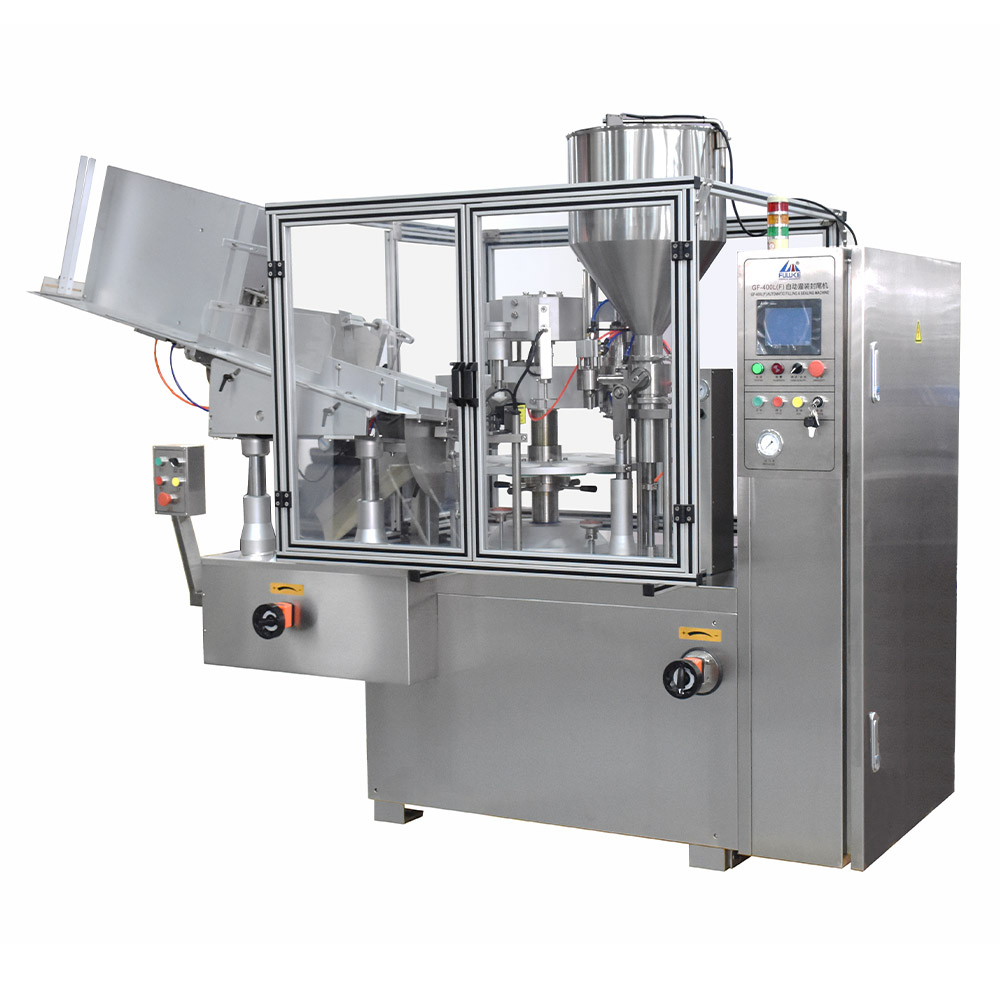

Automatic Tube Filling and Sealing Machine Toothpaste Sunscreen and Facial Cleanser Filling and Sealing Machine for Plastic and Aluminum-plastic Tube

This automatic tube filling and sealing machine is suitable for automatic orientate eye marks, filling, sealing, date printing, and tail cutting of various plastic tubes and aluminum-plastic composite tubes. It is widely used in daily chemical, medical, food, and other industries. (For example, toothpaste, facial cleanser, sunscreen, etc.) Features: This machine uses touch screen and PLC control, automatic tube loading and positioning, and a heat phoenix heating system formed by imported fast and efficient heaters and high-stable flow needles.



It has a firm seal, fast speed, no damage to the seal surface, and a beautiful and neat seal. The machine can be equipped with a variety of filling heads of different specifications to meet the filling requirements of different viscosity, and is equipped with organic glass anti-seal.

Automatic Tube Filling and Sealing Machine: Key Features

⦁ Integrated process connection
The machine integrates a series of functions including automatic tube loading, automatic orientate eye marks, automatic filling, sealing, internal heating, optional external cooling with a chiller, tail sealing, coding, edge trimming, and finished product ejection. No human intervention is required in the entire process. A single machine can meet core packaging needs.
⦁ Precise Metering
Equipped with a high-precision servo system, the metering accuracy reaches ±0.5%. Filling volume can be adjusted from 2.5-400ml via replacement of filling cylinder and filling head, allowing for multiple uses with one machine.
⦁ Intelligent sealing
The heat sealing mode uses an intelligent temperature control system to precisely control the temperature, taking into account both sealing and aesthetics.
⦁ Abnormal monitoring throughout the entire process
It has safety devices such as no filling without tube and overload protection, and the transmission part is fully enclosed.
⦁ Hygienic and clean guarantee
Parts in contact with liquid are made of SUS316/304 stainless steel.
⦁ Customized services
Customize the different functions and configurations of the machine according to customer needs.

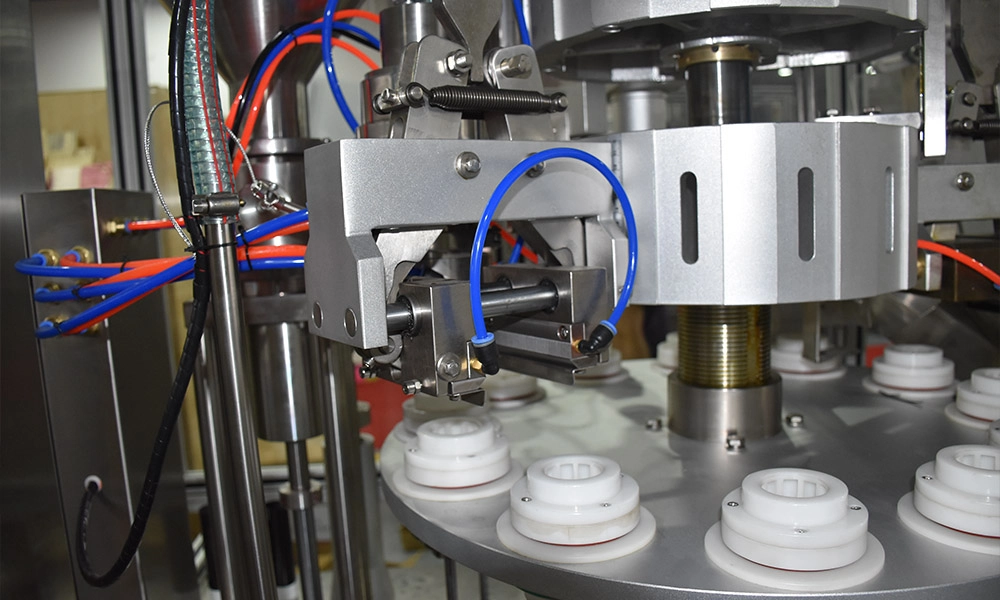

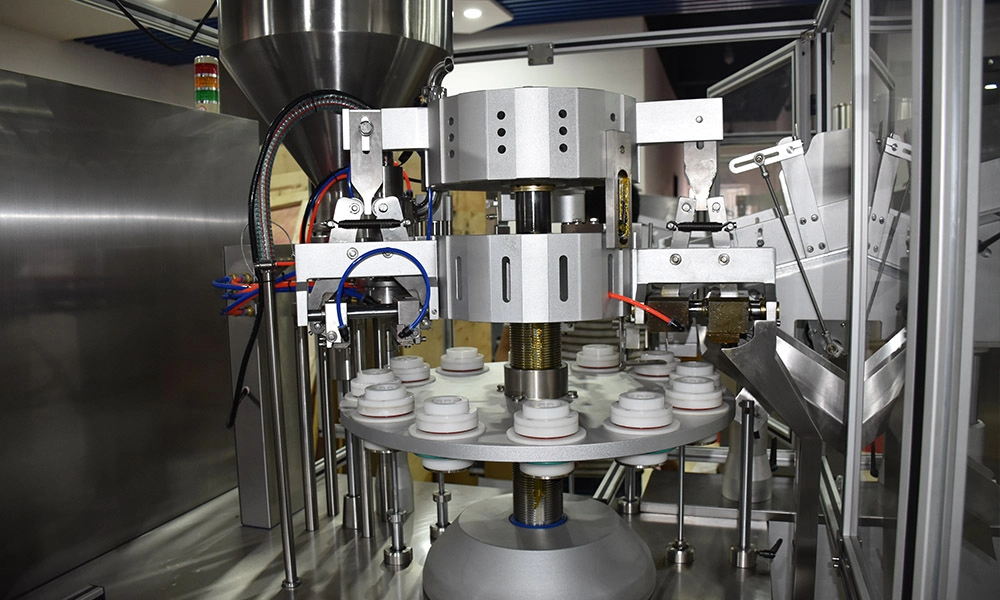

Product Details

Automatic Tube Filling and Sealing Machine-02 - FULUKE
Automatic Tube Filling and Sealing Machine-01 - FULUKE

Machine Specifications

Material High-quality stainless steel SUS316L/SUS304
Filling Range 2.5~10ml, 5~40ml, 15~130ml, 80~250ml, 100~400ml; (filling range can be adjustable, It is necessary to replace the material cylinder and filling head to change different filling ranges.)
Number of Workstations 12 pieces
Main Components The tube filling and sealing machine consists of servo system, temperature control system, cylinder, photoelectric sensor, control system, electrical , pneumatic components, etc.
Filling Speed 30-60 bottles/minute, depending on the filling volume.
Applicable Bottle Size It can be customized according to tube samples
 Customization Available in various filling volume, applicable tube specifications, designs, function and branding options
 PLC Control System Siemens or others

General Application

⦁ Cosmetics and toiletries: creams, lotions, sunscreen, facial cleanser,toothpaste, etc.
⦁ Pharmaceuticals: Ointments, gels, lubricants, etc.
⦁ Foods: mayonnaise, condiments, jam, butter, ketchup, mustard, etc.
⦁ Chemicals: sealants, lubricating oils, greases, etc.
Automatic Tube Filling and Sealing Machine - FULUKE

Machine Advantages

⦁ Customization: Customize the various filling volume ,applicable tube specifications ,functionality, and design to suit your needs.
⦁ Premium Quality Materials: Ensures durability, protection, and beautiful appearance.
⦁ Configuration brand: Electrical , pneumatic components and PLC systems are all high-quality well-known brands.
⦁ Competitive Pricing: Offer competitive pricing based on its unique value and cost structure
⦁ Fast delivery time: Offer fast production and shipping options.

Customization Options

Filling range - FULUKE
⦁ Filling range
The filling range can be customized according to the customer's production needs.
Machine Size - FULUKE
⦁ Tube specifications
The machine can be customized according to the tube samples provided by customers.
Brand - FULUKE
⦁ Brand
Customize configurations of different brands according to customer needs.
Function - FULUKE
⦁ Function
Different functions can be selected according to the customer's production needs.

Packaging & Logistic

⦁ Packing: Wooden box packaging that meets transportation conditions.
⦁ MOQ (Minimum Order Quantity): 1 units per machine.
⦁ Production Time: Different machines have different production times.
⦁ Shipping: Air freight, sea freight, or express delivery options available.

Automatic Tube Filling and Sealing Machine Videos

Frequently Asked Questions

Automatic Tube Filling and Sealing Machine
Who are we?

Our headquarters is located in Guangzhou, Guangdong, China, and our factory is located in Yangzhou, Jiangsu. Our products are sold all over the world. We have approximately 50 employees in our company and factory.

Does the equipment meet the hygiene standards of the pharmaceutical/food industry? What precautions should be taken during daily cleaning?

The equipment fully complies with GMP hygiene certification. All material contact parts (drums, filling heads, and piping) are made of 316L/304 stainless steel, ensuring no unhygienic corners.

Daily cleaning precautions:

Before each material change, flush the material piping with purified water or food-grade detergent and then dry it with compressed air. Disassemble the filling heads and valves weekly to remove any residual material to prevent bacterial growth. Never use water directly on components such as the electrical control cabinet and motor. Always disconnect the power cord during cleaning to prevent short circuits.

After purchasing the equipment, what after-sales services does the supplier typically provide?

General services include on-site installation and commissioning (including workshop layout planning), operator training (theoretical and practical training to ensure workers can operate independently), a one-year full machine warranty, and lifetime technical support (24-hour telephone and video troubleshooting).

Can you customize the machine?

Of course, we provide customized services according to customer needs.

Do you have a complete production line for facial masks?

Of course, we can also provide high-speed facial mask folding machine + online weighing and rejecting machine + automatic sheet counting machine + automatic cartoning machine + automatic three-dimensional cigarette packaging machine + online inkjet printer, etc.

Can the device accommodate tubes of different materials and specifications?

Yes. The device supports plastic (PE, PP) and aluminum-plastic composite hoses. The compatible hose diameter range is typically Φ10-Φ60mm (customizable to user specifications), and the capacity range is 2.5ml-400ml. By replacing specialized molds (such as cylinders and filling heads), the device can be adapted to meet different filling volumes, providing flexible adaptability.
