Negative Ion Air Compressor Gas Dust Collector Washer Plastic Bottle Glass Bottle Cleaning Machine

This machine uses clean compressed air and a negative ion generator to clean the inside of plastic bottles. The clean air is then exhausted through another outlet. It employs a dual precision filtration system to effectively remove dust, water droplets, bacteria, and other impurities from the inside and sides of the bottle, and eliminates static electricity, thus achieving the purpose of cleaning both plastic and glass bottles. In addition, it is equipped with a dust removal device.

Automatic Negative ion bottle air dust removal machine: Key Features

⦁ Negative ion electrostatic elimination + simultaneous blowing and suction, thorough dust removal with no residue left behind.
Built-in negative ion generator, ionizing the air to produce ionized air stream, neutralizing the static electricity on the bottle wall and allowing dust to detach; combined with the dual-path system of blowing and suction, dust does not rebound or undergo secondary adsorption, with a dust removal rate of ≥99% for fine dust.
⦁ Double precision filtration
Configure double precision filters to effectively remove dust, water droplets, bacteria and other impurities from both inside and on the surface of the bottle.
⦁ Energy-saving and low-consumption, water-free dry cleaning, cost reduction and efficiency improvement
Pure air dry dust removal, no need for water or drying. Compared with the water washing + drying process, it saves 100% of water and 30%+ of energy. It eliminates the drying step, significantly reducing operating costs.
⦁ Efficiently eliminate static electricity and prevent secondary adsorption
Negative ions neutralize the static electricity between the bottle wall and dust, leaving the bottle uncharged after dust removal. This prevents the bottle from re-adsorbing dust from the air during filling or transportation, maintaining long-term cleanliness.
⦁ Hygienic and clean guarantee
Parts in contact with liquid are made of SUS316/304 stainless steel.
⦁ Customized services
Customize the different functions and configurations of the machine according to customer needs.

Product Details

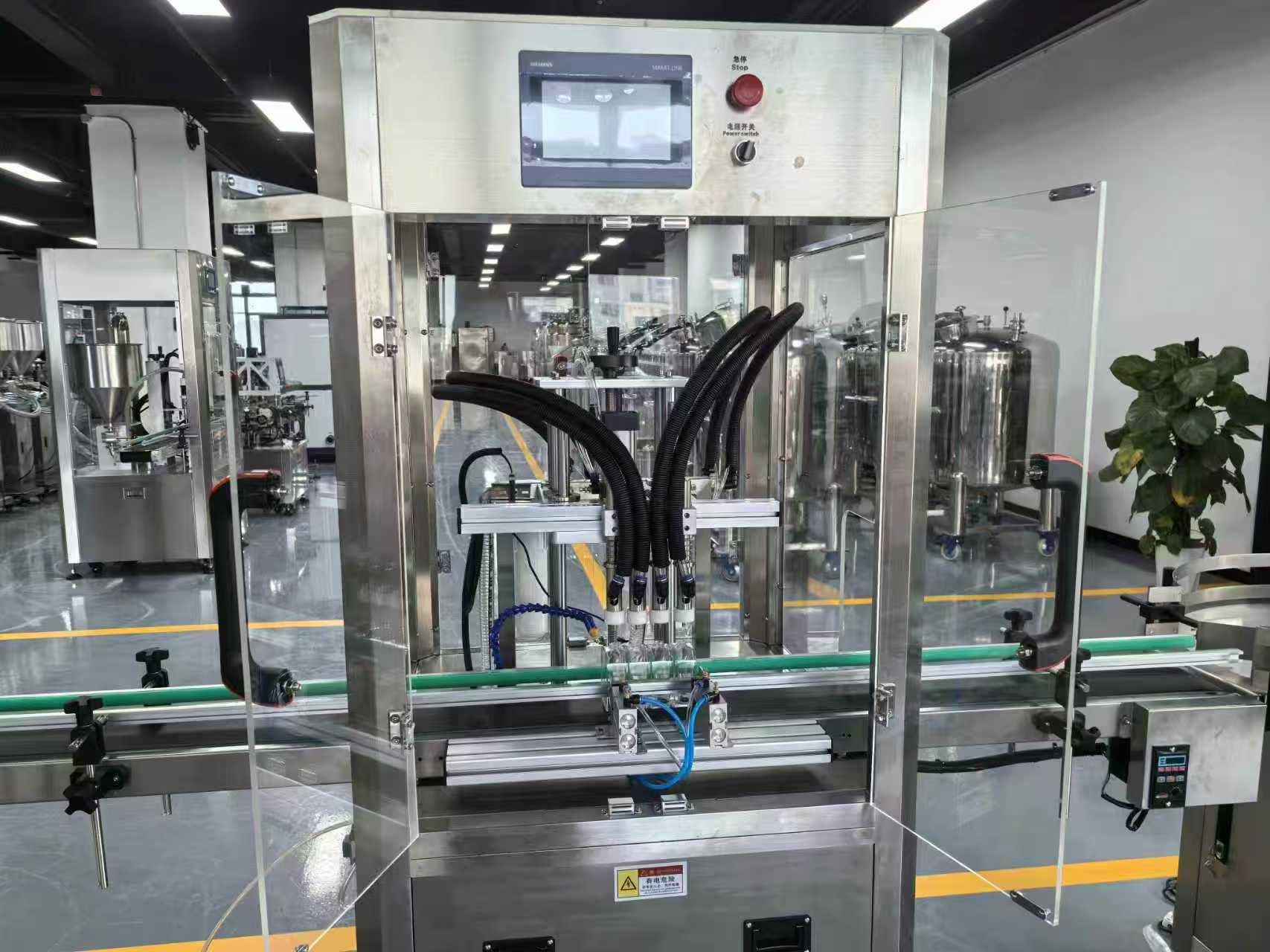

a5eeb292290be6874c51f650b9611cac - FULUKE

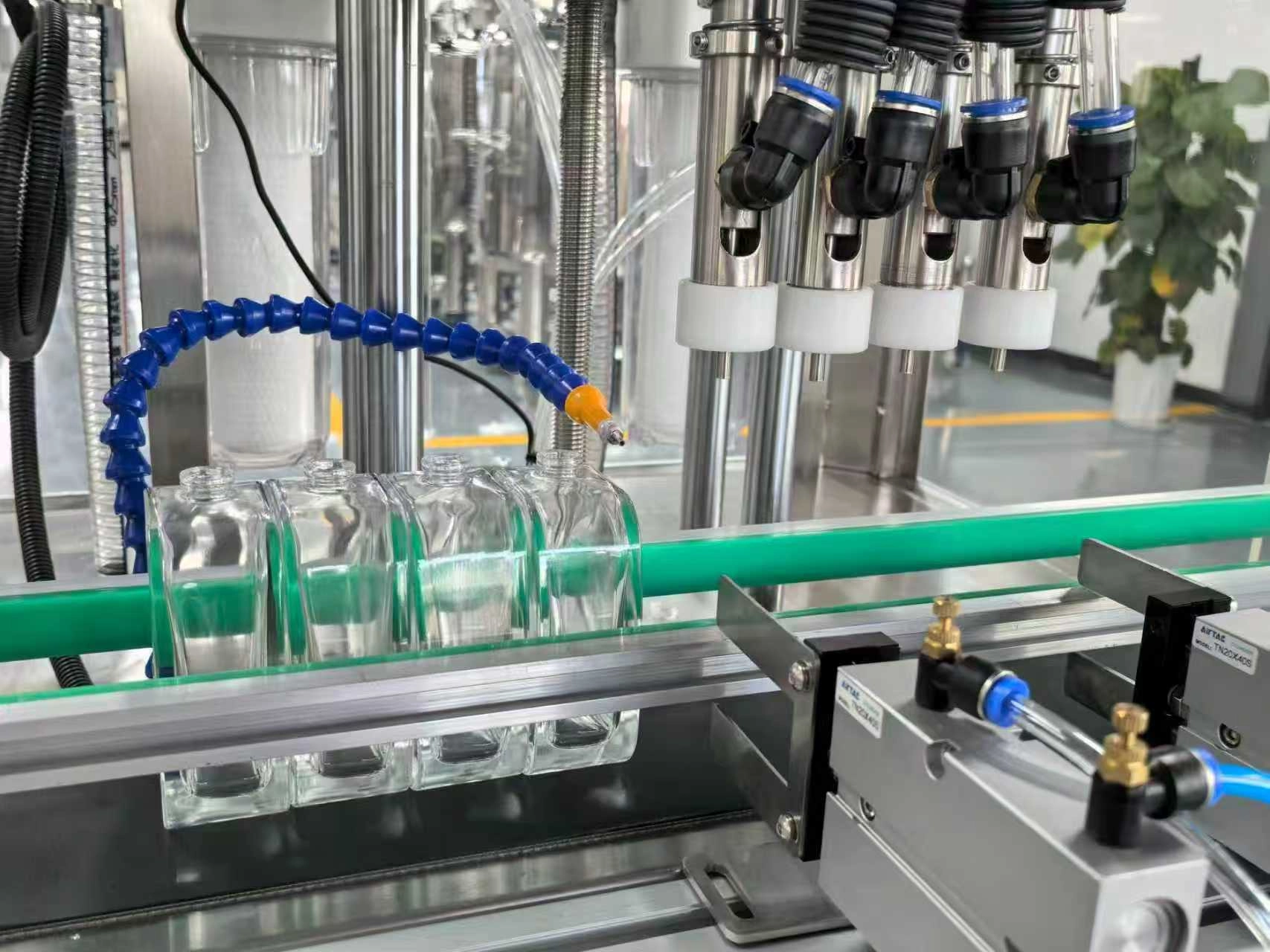

7a33944e509af4537c9c05fcad888b3c - FULUKE

Machine Specifications

   Material High-quality stainless steel SUS316L/SUS304
Working Air Source 0.6–0.8 MPa
Number of Working Nozzles 4/6/8/10 nozzles(Customizable)
Main Components The machine consists of Motor,an electric eye,Filter,Frequency Inverter,Pneumatic Components, etc.
Work Efficiency 25-60 bottles/min
Applicable Bottle Size It can be customized according to bottle samples
 Customization Available in various bottle style, applicable bottle size, designs, function and branding options
PLC Control System Siemens or others

General Application

⦁ Various styles bottles
十点玻璃瓶清洗机产品特点与功能概述 - FULUKE

Machine Advantages

⦁ Customization: Customize the various bottle style, applicable bottle size,functionality, and design to suit your needs.
⦁ Premium Quality Materials: Ensures durability, protection, and beautiful appearance.
⦁ Configuration brand: Electrical , motor and control systems are all high-quality well-known brands.
⦁ Competitive Pricing: Offer competitive pricing based on its unique value and cost structure
⦁ Fast delivery time: Offer fast production and shipping options.

Customization Options

Filling range - FULUKE
⦁ Number of Working Nozzles
Follow up on customer requests for customization.
Machine Size - FULUKE
⦁ Bottle specifications
The machine can be customized according to the bottle samples provided by customers.
Brand - FULUKE
⦁ Brand
Customize configurations of different brands according to customer needs.
Function - FULUKE
⦁ Function
Different functions can be selected according to the customer's production needs.

Packaging & Logistic

⦁ Packing: Wooden box packaging that meets transportation conditions.
⦁ MOQ (Minimum Order Quantity): 1 units per machine.
⦁ Production Time: Different machines have different production times.
⦁ Shipping: Air freight, sea freight, or express delivery options available.

Automatic Negative ion bottle air dust removal machine Videos

Frequently Asked Questions

Automatic Negative ion bottle air dust removal machine
Is this equipment suitable for glass bottles or plastic bottles? Is it universally compatible?

It is completely universal. This machine is specifically designed to accommodate various types of glass bottles, PET plastic bottles, PP bottles, and irregularly shaped bottles. It is suitable for use with oral liquid bottles, essential oil bottles, beverage bottles, and pharmaceutical bottles alike; it is not particular about the material and does not cause any damage to the bottles.

Will the equipment damage or scratch thin-walled or soft plastic bottles?

No, it will not. The system utilizes non-contact ionic air cleaning technology, featuring no brushes and zero physical friction, while offering adjustable air pressure. For thin-walled or soft bottles, the air pressure can be reduced to ensure zero scratches, zero breakage, and zero deformation.

What specific impurities can a negative ion dust removal machine primarily eliminate from bottles? How effective is its dust removal performance?

It primarily removes fine impurities such as surface dust (both internal and external), paper scraps, lint, particulate matter, and mold debris. By utilizing a closed-loop system that combines negative ion static elimination with a blow-and-suction mechanism, the dust removal rate can exceed 99%, effectively resolving issues related to bottles attracting dust and the presence of foreign objects during the filling process.

Compared to traditional water-based bottle washing, what are the advantages of negative ion dust removal?

It requires no water, no drying, leaves no water stains, and causes no secondary contamination—achieving truly dry dust removal. It eliminates the entire process of water washing followed by oven drying, thereby saving electricity and labor while requiring minimal floor space. This method is particularly well-suited for the production of products that are sensitive to water stains or require a high degree of cleanliness.

What is the equipment's production capacity? Can it be integrated into a complete production line?

The standard model has a production capacity of 1,000–8,000 bottles per hour, and can be customized with multiple workstations (e.g., 4, 6, 8, 10, etc.). It can be directly integrated with bottle unscramblers, filling machines, capping machines, and labeling machines.

Why are bottles less prone to re-accumulating dust after cleaning?

The equipment features a built-in negative ion static elimination function that neutralizes static electricity on the bottle surface. While standard dust removal methods merely blow away dust, this machine eliminates the source of static attraction; consequently, the bottle remains electrically neutral after cleaning, making it significantly less likely to re-accumulate dust during subsequent conveying and filling processes.
