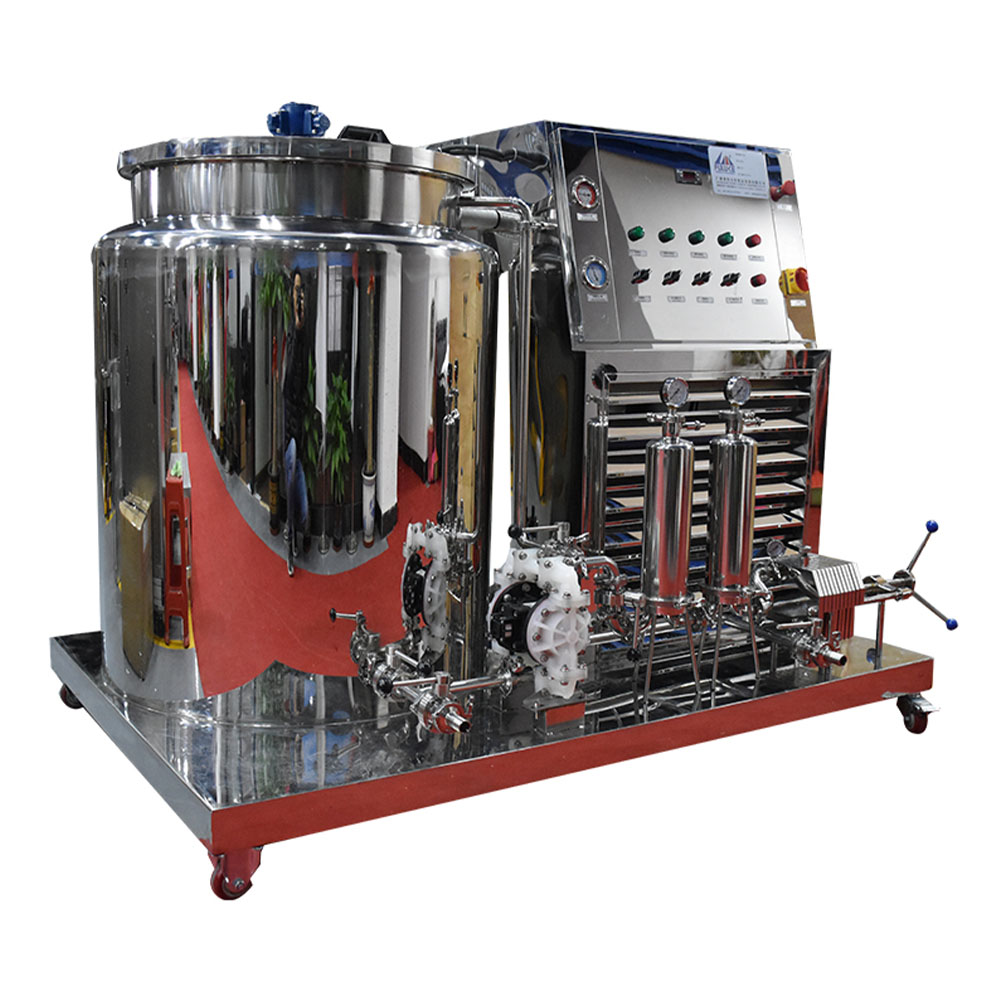

Perfume Freezing Filter Making Machine Fragrance Making Machine with Cooling Stirring System Perfume Chiller

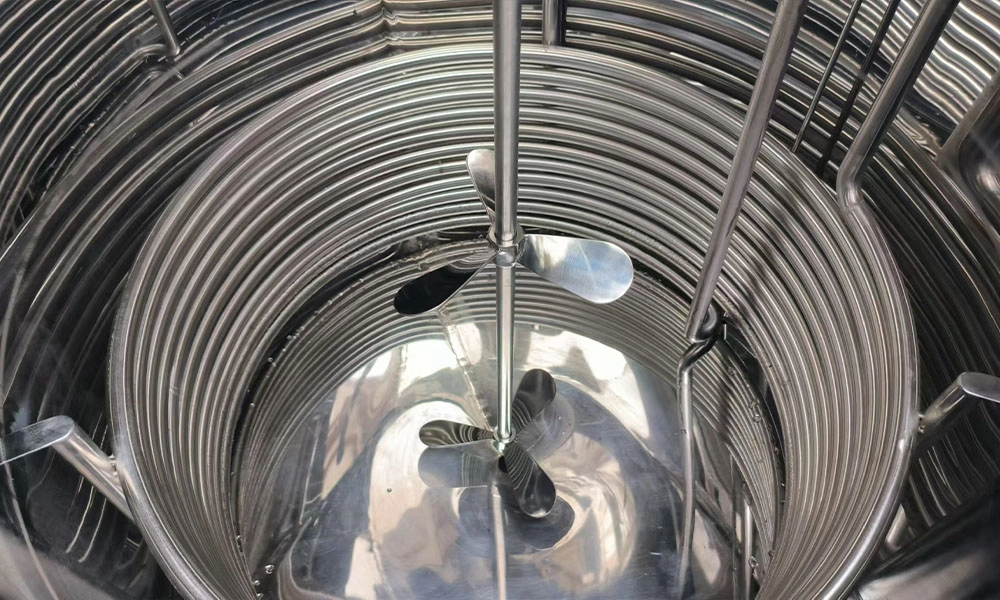

This perfume freezing filter making machine, developed by our company, is specialized for clarifying and filtering super-refrigerated liquids such as toner and perfumes. Stainless steel coil cooling inside the tank.It is ideal for filtering perfumes in cosmetics factories. Constructed entirely of high-quality 304 or 316L stainless steel, it utilizes an imported oxygen-driven diaphragm pump as its power source for positive pressure filtration. The quick-connect piping utilizes sanitary polished fittings and features quick-connect design for easy disassembly and cleaning.
Equipped with a polypropylene microporous filter membrane, it is widely used in the cosmetics industry, research institutes, hospitals, laboratories, and other sectors for convenient and reliable clarification and sterilization of small amounts of liquids, as well as for trace chemical analysis.
Perfume Freezing Filter Machine: Key Features
Product Details
Machine Specifications
| Material | High-quality stainless steel SUS316L and SUS304 | ||
| Pot lid Type |
Flip lid type, half of the lid can be opened. |
||
| Capacity | From 100L to 1000L (Customizable) | ||
| Main Components | The perfume freezing filter machine is mainly composed of cooling coils, compressors, pneumatic agitators, diaphragm pumps, filters, control system , etc. | ||
| Mixing System | Stainless steel pneumatic stirring | ||
| Filters | 2 microporous filters (1 each with filtration accuracy of 5μm and 0.22μm); 1 plate and frame filter (filtration accuracy of 0.1μm); ★Three-stage filtration system. | ||
| Brand | Danfoss compressor, American SANDPIPER pneumatic diaphragm pump | ||
| Customization | Available in various sizes, capacity, designs, function and branding options | ||
General Application
Machine Advantages
Customization Options
Packaging & Logistic
Perfume Freezing Filter Machine Videos
Frequently Asked Questions
Perfume Freezing Filter Making Machine
Why does perfume require freeze filtration? Is traditional filtration an alternative?
Traditional filtration only removes visible solid impurities. Soluble organic matter, colloids, and trace microorganisms in perfume are difficult to separate at room temperature, easily leading to turbidity, precipitation, and aroma deterioration after storage. Freeze filtration uses a low-temperature environment of -5°C to -15°C (depending on the formulation) to condense these hidden impurities into solid particles. These particles are then thoroughly trapped through precision filtration, while simultaneously allowing the fragrance components to fully blend. This is a core process that ensures the stability of high-end perfumes.
Does the filtration process cause loss of fragrance components?
High-quality equipment uses a gradient filtration design (such as a 0.22μm precision filter membrane) to capture only condensed impurities and avoid adsorbing active fragrance molecules.
Can you customize the machine?
Of course, we provide customized services according to customer needs.
What can you buy from us?
RO Water Treatment、Vacuum Emulsifying Machine、Homogenizer Mixing Tank、Filling and Capping、labeling Machine、Packing Machine、Storage Tank,etc.
Can you make a design for us?
Yes, we can, we provide not only products, but also solutions and designs.
Who are we?
Our headquarters is located in Guangzhou, Guangdong, China, and our factory is located in Yangzhou, Jiangsu. Our products are sold all over the world. We have approximately 50 employees in our company and factory.
