Automatic Glass Bottle Washing Machine High Quality Glass Bottle Cleaning Washer

Bottles are placed to this machine by hand, batch located and both inside and outside washed. In this machine, bottles will be washed twice by water and once by air. The machine could guarantee high pressure water column and compressed air jet into bottles precisely. Bottles will be first washed by normal clean water, then by pure water (Pure water will be stocked in a water tank and recycled), at last by compressed air which could blow drop let off the bottle and enhance the efficiency of bottle dry.

Automatic Glass Bottle Washing Machine: Key Features

⦁ Multi-stage composite cleaning technology
Intermittent positioning internal and external rinsing, two water washes and one air blow, to achieve thorough cleaning of stubborn oil stains, adhesives and particles.
⦁ Energy-saving and low-noise
High-efficiency motor, variable frequency speed control, and waste heat recovery ensure stable operation, low noise, and energy consumption that is 20%–40% lower than traditional equipment.
⦁ High-pressure internal and external spraying
Multi-angle adjustable nozzles enable all-round rinsing of the bottle's interior, body, and bottom.
⦁ Pure water rinsing
The final rinse is done with pure water to ensure no chemical residues remain and to meet pharmaceutical-grade cleanliness requirements.
⦁ Hygienic and clean guarantee
Parts in contact with liquid are made of SUS316/304 stainless steel.
⦁ Customized services
Customize the different functions and configurations of the machine according to customer needs.

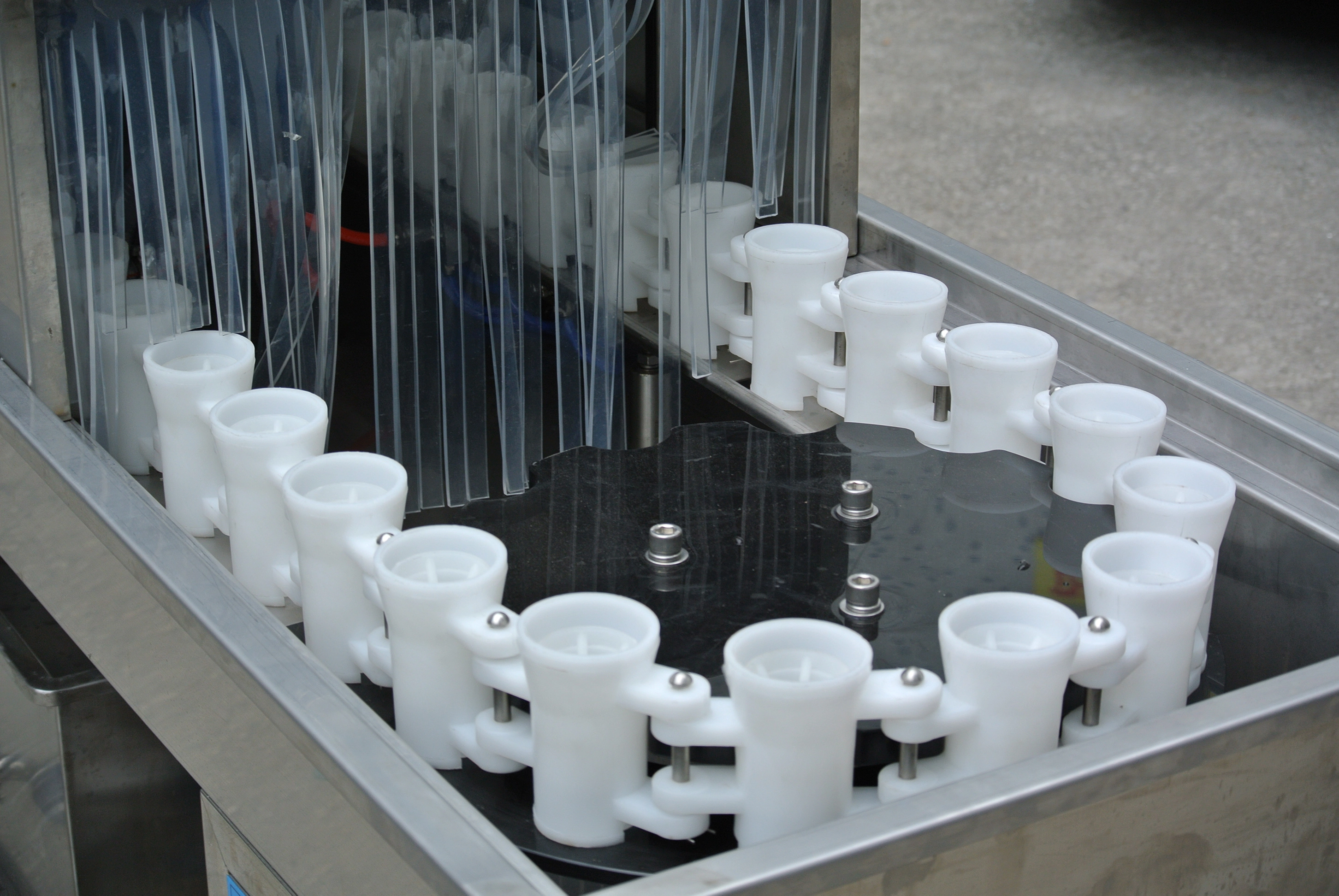

Product Details

8 - FULUKE
7 - FULUKE

Machine Specifications

Material High-quality stainless steel SUS316L/SUS304
Water consumption 1.5 m³/h
Number of Workstations 48 pieces
Main Components The bottle washing machine consists of Motor,Water Pump,Filter,Frequency Invertercontrol system, electrical , etc.
Filling Speed 2000-3000 bottles/hour
Applicable Bottle Size It can be customized according to bottle samples
 Customization Available in various bottle style, applicable bottle size, designs, function and branding options
Electrical Delixi or others

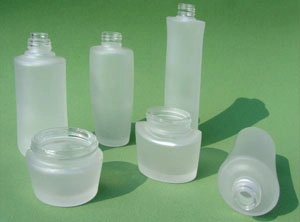

General Application

⦁ Various styles of glass bottles
图片1 - FULUKE

Machine Advantages

⦁ Customization: Customize the various bottle style, applicable bottle size,functionality, and design to suit your needs.
⦁ Premium Quality Materials: Ensures durability, protection, and beautiful appearance.
⦁ Configuration brand: Electrical , motor and control systems are all high-quality well-known brands.
⦁ Competitive Pricing: Offer competitive pricing based on its unique value and cost structure
⦁ Fast delivery time: Offer fast production and shipping options.

Customization Options

Filling range - FULUKE
⦁ Bottle style
Customize the various bottle style.
Machine Size - FULUKE
⦁ Bottle specifications
The machine can be customized according to the tube samples provided by customers.
Brand - FULUKE
⦁ Brand
Customize configurations of different brands according to customer needs.
Function - FULUKE
⦁ Function
Different functions can be selected according to the customer's production needs.

Packaging & Logistic

⦁ Packing: Wooden box packaging that meets transportation conditions.
⦁ MOQ (Minimum Order Quantity): 1 units per machine.
⦁ Production Time: Different machines have different production times.
⦁ Shipping: Air freight, sea freight, or express delivery options available.

Automatic Glass Bottle Washing Machine Videos

Frequently Asked Questions

Automatic Glass Bottle Washing Machine
What to do if the sprinkler head is clogged? How to prevent it?

If clogged, turn off the power to the equipment, remove the sprinkler head, and flush it with high-pressure water or soak it in a weak acid solution for 10-15 minutes to clear the blockage. Prevention methods: Clean the water circulation filter regularly to prevent impurities from entering the sprinkler head; use standard clean water (free from large amounts of sediment and impurities) to avoid long-term use of hard water that can cause scale buildup.

What can you buy from us?

RO Water Treatment、Vacuum Emulsifying Machine、Homogenizer Mixing Tank、Filling and Capping、labeling Machine、Packing Machine、Storage Tank,etc.

How efficient is the equipment at cleaning?

The standard model can clean 2000-3000 bottles per hour, supports variable frequency speed control, and flexibly matches the cycle time of different production lines.

Can the equipment clean glass bottles with stubborn stains (such as label residue, oil, and medicine stains)?

Yes. The equipment integrates high-pressure spraying, multiple internal and external rinsing, and drying multi-stage composite cleaning technology, which can remove tiny stains and break down oil stains. For stubborn stains, the cleaning time can be adjusted to ensure that the cleaning meets the standards.

Can the equipment be customized? For example, adjusted according to special bottle shapes or cleaning requirements?

Yes, it can be customized. We can customize the equipment's dimensions, cleaning modules, control systems, etc., based on the user's special bottle shapes (such as extra-large diameter or extra-long bottle bodies), cleaning standards (such as higher cleanliness requirements), and production line cycle time, to meet the personalized needs of different users.

What sizes of glass bottles can this washing machine be used with?

It can be used with various glass bottles with a diameter of 25-80mm and a height of 50-150mm, including round bottles, square bottles, irregularly shaped bottles, thin-walled bottles, wide-mouth bottles, etc. It can be quickly adjusted through the mold without changing the core components, and is suitable for commonly used bottle types in the food, pharmaceutical, and cosmetic industries.
