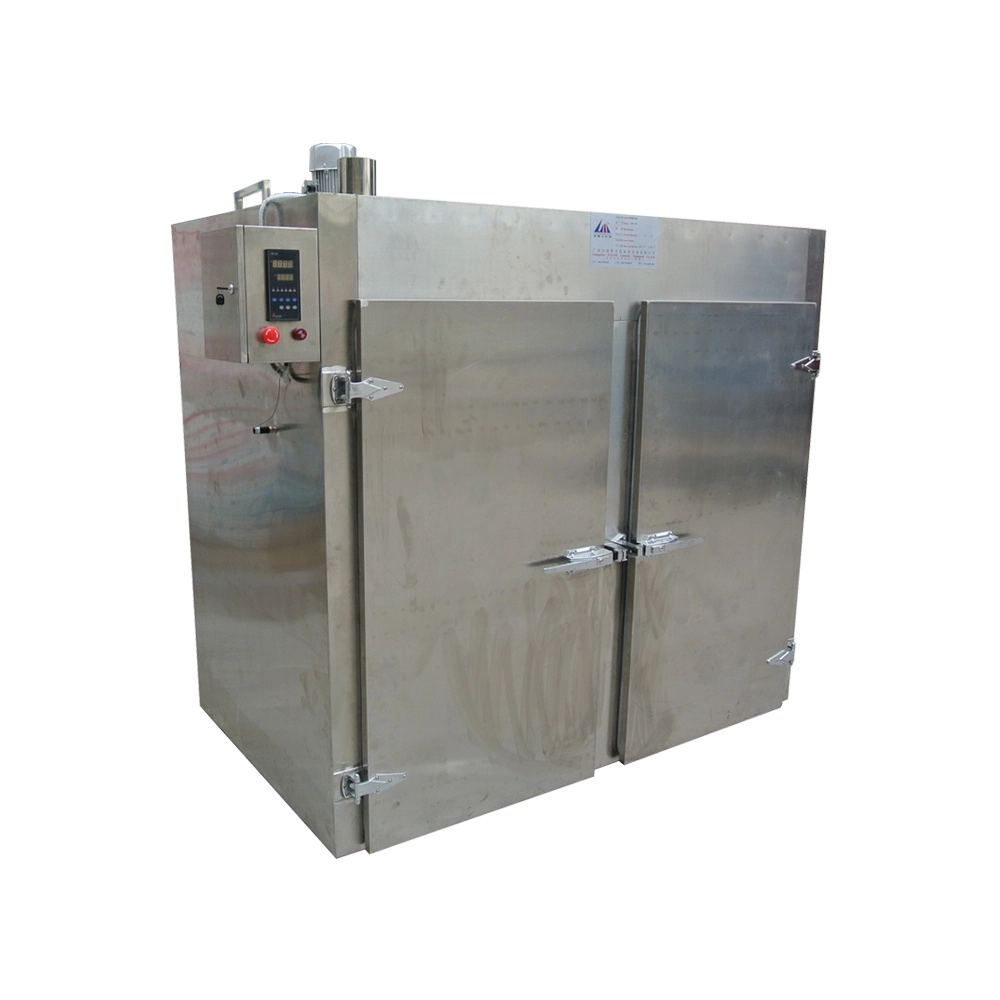

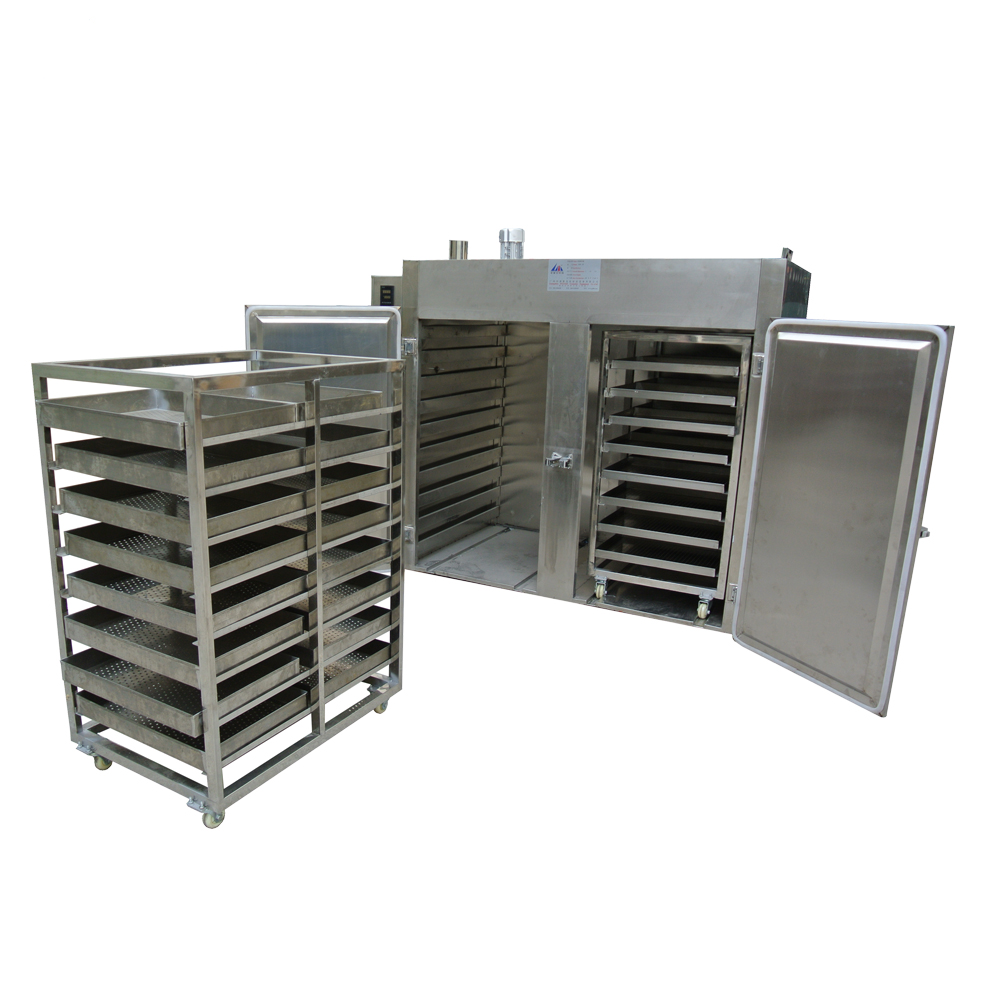

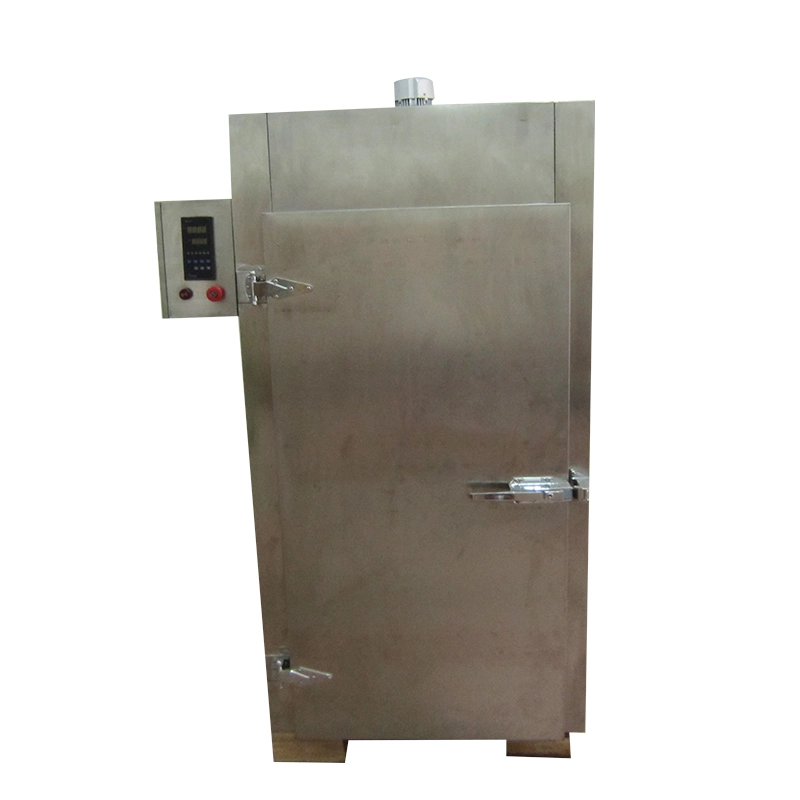

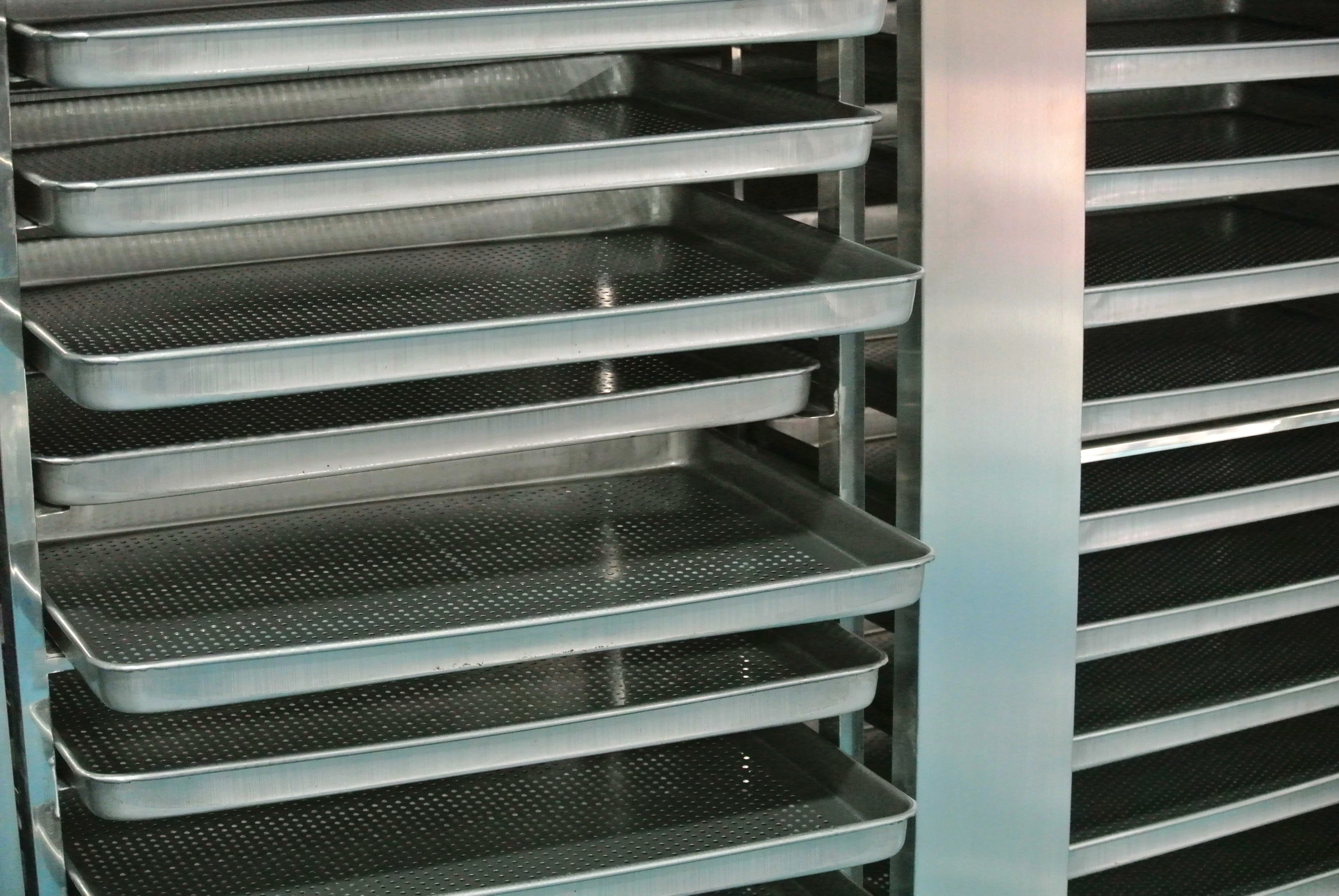

Over for Bottles High Temperature Sterilizer Tray Dryer Large Hot Air Circle Drying Oven for Glass Bottle Jar Cup Can
The oven completely adopt axial fan equipped with automatic constant temperature control system, which is provided with computer control system for option. The working principle is to make use of the steam or electric heat source, through heating the air by heat exchanger and adopting the axial fan as the driving power, the moisture content of hot materials is reduced so as to realize the purpose of drying.
Oven Machine: Key Features
Product Details
Machine Specifications
| Material | High-quality stainless steel SUS316L/SUS304 | ||
| Evaporation area | 7/14㎡ | ||
| Heating power | 9/15kw | ||
| Main Components | The Oven Machine consists of Axial flow fan, heat exchanger, electrical , etc. | ||
| Fan power | 0.45/0.75kw | ||
| Applicable Bottle Size | It can suitable for glass bottles of different heights, diameters, and shapes. | ||
| Customization | Available in function and branding options | ||
| Electrical | OMRON or others | ||
General Application
Machine Advantages
Customization Options
Packaging & Logistic
Oven Machine Videos
Frequently Asked Questions
Oven machine
Does this oven meet the hygiene standards for the food and pharmaceutical industries?
Yes. All internal components are made of food-grade 304/316L stainless steel, eliminating any unsanitary corners, making it easy to clean, corrosion-resistant, and heat-resistant, capable of withstanding high-temperature sterilization. The drying process meets food-grade (GB 14881) and pharmaceutical-grade (GMP) hygiene requirements, making it suitable for drying glass bottles in the food, beverage, pharmaceutical, and cosmetic industries.
What causes uneven drying and water residue in the drying oven? How to solve it?
There are three main causes and solutions: ① Insufficient airflow: Adjust the fan speed and clear any blockages from the air inlet and outlet; ② Blocked air ducts: Disassemble the air ducts and clean any accumulated dust and debris to ensure smooth hot air circulation; ③ Inappropriate temperature settings: Adjust the temperature and drying time according to the bottle type and residual water level. For thin-walled bottles, increase the airflow and decrease the temperature appropriately.
What sizes of glass bottles can this glass bottle drying oven accommodate?
It can accommodate various types of glass bottles, including small-mouth bottles, wide-mouth bottles, irregularly shaped bottles, thin-walled bottles, oral liquid bottles, essential oil bottles, etc., meeting the needs of the food, pharmaceutical, and cosmetic industries.
Do the drying parameters need to be adjusted for glass bottles of different materials and thicknesses?
Slight adjustments are needed. For thin-walled and lightweight bottles, the temperature can be lowered appropriately to avoid overheating and breakage; for thick-walled and large-capacity bottles, the temperature can be increased to ensure thorough drying.
Will the dried glass bottles develop water stains or deformities?
No. The equipment uses a uniform axial hot air flow design, eliminating temperature dead zones and preventing water stains. The temperature can be precisely controlled to suit the high-temperature resistance range of the glass bottles, preventing deformation.
