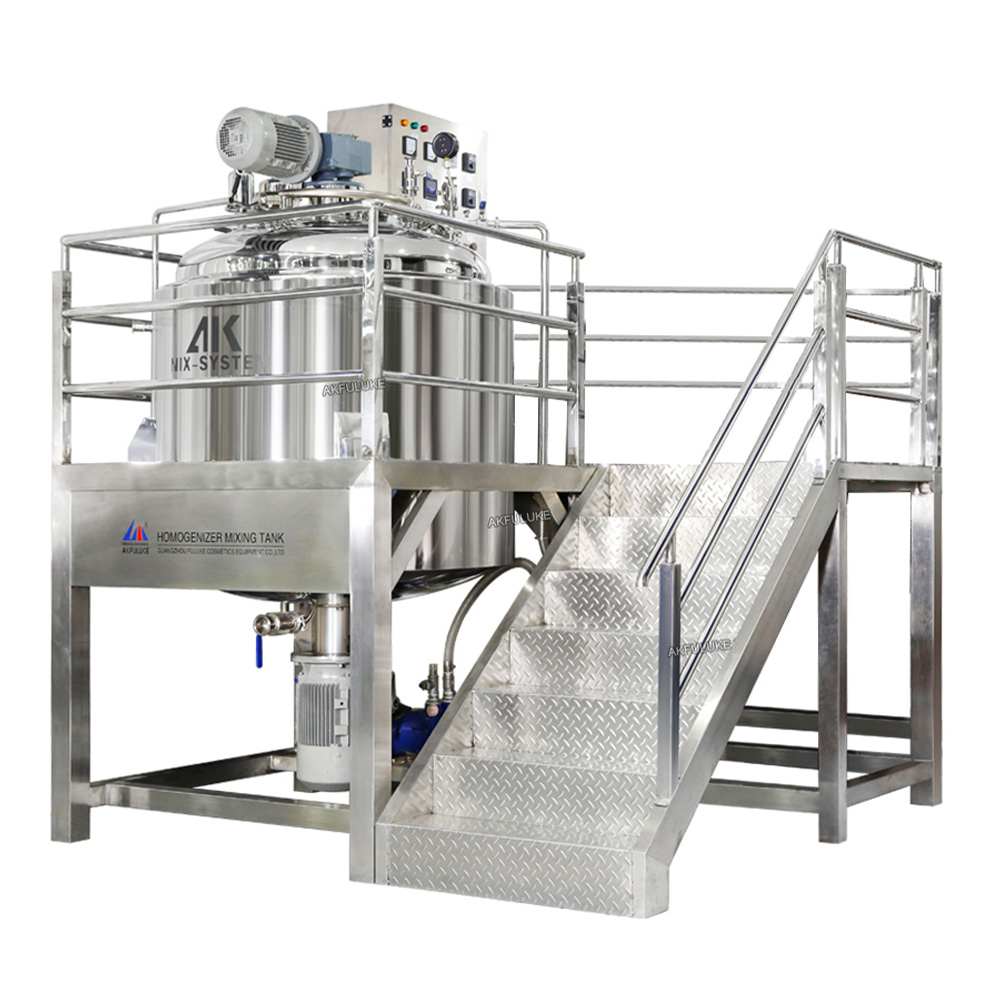

Stainless Steel Mixer Liquid Mixing tank with Agitator Homogenizing Mixing tank Vacuum Sealed Mixer Machine

The Sealed Homogenizing mixing tank is an industrial-grade material handling equipment that integrates four core functions: vacuum defoaming, high-speed homogenization, efficient stirring, and precise temperature control. It is widely used in the cosmetics, pharmaceutical, food, chemical and other industries.

It is specially designed to solve the mixing, emulsification, homogenization and degassing needs of high-viscosity, multi-phase (solid-liquid, liquid-liquid) materials. It can produce delicate, stable, bubble-free creams, lotions, gels, ointments, sauces and other products.

Request a Free Quote

Sealed Homogenizing Mixing Tank: Key Features

⦁ Vacuum System

Start the vacuum system (consisting of a vacuum pump, vacuum valve, etc.) to evacuate the inside of the stirring pot to create a negative pressure environment (usually the vacuum degree can reach -0.09MPa).

⦁ Mixing system

Mixing system: Frame agitator (speed of about 0-65rpm) mixes different materials such as oil phase and water phase through shearing, folding and convection, breaking up the material stratification; the polytetrafluoroethylene scraper rotates close to the pot wall, thoroughly scraping off the sticky material attached to the pot wall, avoiding local overheating or residue of the material, and ensuring there is no dead corner for mixing.

⦁ Homogenizing System

A high-speed rotating homogenizing head is installed at the bottom (or side) of the emulsifier. It consists of a rotor (with sharp teeth) and a stator (with fixed teeth). The rotor rotates at high speed, generating a powerful centrifugal force that draws the material into the gap between the rotor and stator. Within this gap, the material is subjected to a triple force of shear, impact, and turbulence. The teeth of the rotor and stator rapidly cut the material, while also generating high-frequency vibrations.

⦁ Cleaning function

The vacuum homogenizing mixing pot can be equipped with a CIP cleaning system according to customer needs, which can automatically clean the inside of the equipment to improve production efficiency and hygiene level.

⦁ High-quality materials

The machine is made of stainless steel SUS316L and SUS304, in compliance with GMP standards.

⦁ Intelligent control system

It can be equipped with a PLC intelligent control system to achieve fully automatic operation and remote control.

⦁ Precise temperature control

It has a complete heating and temperature control system, which can accurately adjust the temperature according to the processing requirements of different materials.

⦁ Customized services

Customize the different functions and configurations of the machine according to customer needs.

Product Details

Lifting vacuum emulsifying machine - FULUKE

Machine Specifications

Material	High-quality stainless steel SUS316L and SUS304
Pot lid Type	Fixed Type/The lid can be customized to lock with bolts for easy removal.
Capacity	From 10L to 10000L (Customizable)
Main Components	The Sealed Homogenizing mixing tank is mainly composed of mixing system, homogenizing system, heating and cooling system, vacuum system(optional), electric control system (PLC is optional), operation platform, etc.
Mixing System	One-way mixing, two-way mixing, ribbon mixing.
High Shear homogenization System	Upper homogenization, lower homogenization, internal and external circulation homogenization. The maximum emulsification speed can reach 5800 rpm.
Motor brand	German Siemens or Swiss ABB
Customization	Available in various sizes, capacity, designs, function and branding options

General Application

⦁ Cosmetics and toiletries: creams, lotions, serums, shampoos, shower gels, toothpaste, etc.

⦁ Pharmaceuticals: ointments, syrups, gels, cod liver oil emulsions, etc.

⦁ Foods: mayonnaise, condiments, jam, butter, ketchup, mustard, etc.

⦁ Chemicals: defoaming agents, lubricant additives, shoe polish, etc.

Machine Advantages

⦁ Customization: Customize the size, capacity, functionality, and design to suit your needs.

⦁ Premium Quality Materials: Ensures durability, protection, and beautiful appearance.

⦁ Configuration brand: Motors, inverters and electrical systems are all high-quality well-known brands.

⦁ Competitive Pricing: Offer competitive pricing based on its unique value and cost structure

⦁ Fast delivery time: Offer fast production and shipping options.

Customization Options

⦁ Machine Size

The size of the machine can be designed and customized according to customer needs.

⦁ Machine Capacity

The capacity of the machine can be customized according to the customer's production needs.

⦁ Brand

Customize configurations of different brands according to customer needs.

⦁ Function

Different functions can be selected according to the customer's production needs.

Packaging & Logistic

⦁ Packing: Wooden box packaging that meets transportation conditions.

⦁ MOQ (Minimum Order Quantity): 1 units per machine.

⦁ Production Time: Different machines have different production times.

⦁ Shipping: Air freight, sea freight, or express delivery options available.

Sealed Homogenizing Mixing Tank Videos

Frequently Asked Questions

Sealed Homogenizing Mixing Tank

What is the speed of the high shear homogenizer?

The standard speed is 0-3000 rpm, but higher speeds can be customized upon request.

Is it possible to not have a heating function?

Of course, if your product's production process doesn't require heating and cooling functions, then you can just make it a single-layer pot.

What can you buy from us?

RO Water Treatment、Vacuum Emulsifying Machine、Homogenizer Mixing Tank、Filling and Capping、labeling Machine、Packing Machine、Storage Tank,etc.

Who are we?

Our headquarters is located in Guangzhou, Guangdong, China, and our factory is located in Yangzhou, Jiangsu. Our products are sold all over the world. We have approximately 50 employees in our company and factory.

What is the structure of an agitator?

The agitator usually consists of a "frame agitator (SUS316L material) + scraper (PTFE)" or an anchor agitator.

Can you make a design for us?

Yes, we can, we provide not only products, but also solutions and designs.
