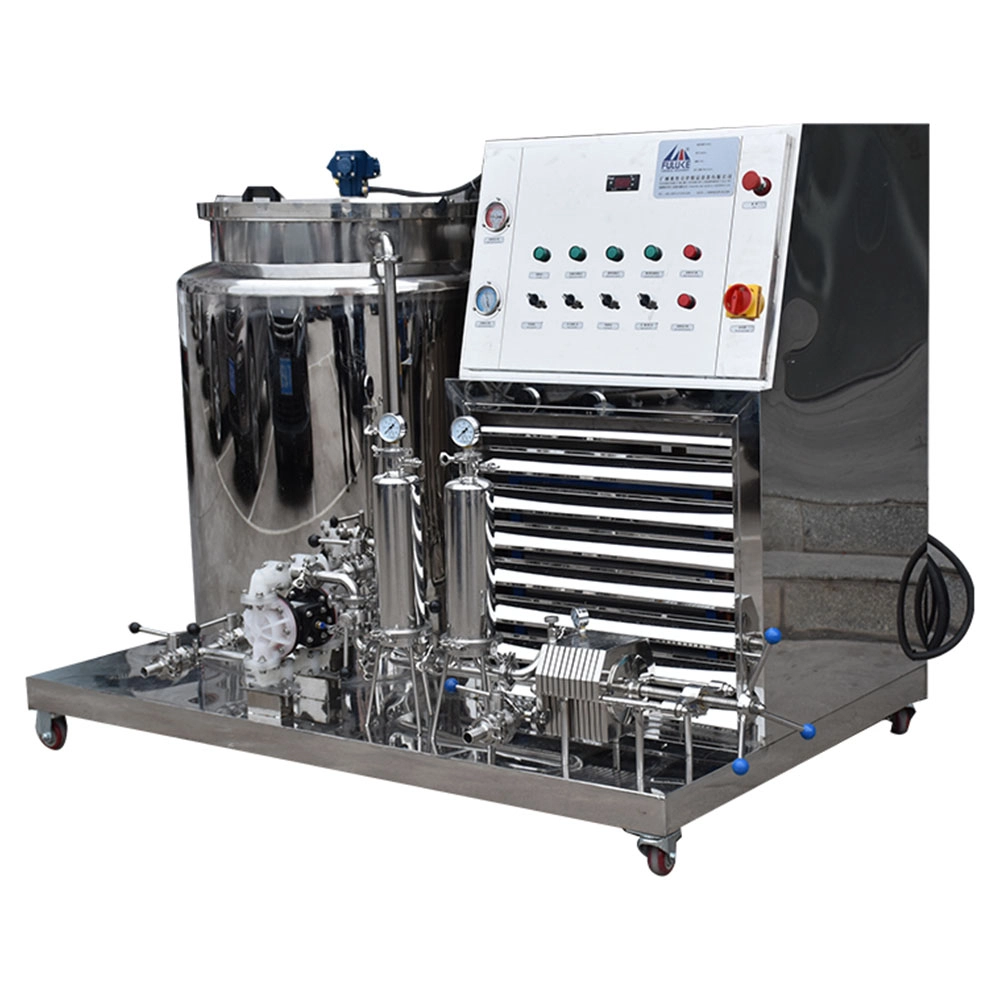

Perfume Freezing Filter Making Machine Fragrance Making Machine with Cooling Stirring System Perfume Chiller

This perfume freezing filter making machine, developed by our company, is specialized for clarifying and filtering super-refrigerated liquids such as toner and perfumes. Stainless steel coil cooling inside the tank.It is ideal for filtering perfumes in cosmetics factories. Constructed entirely of high-quality 304 or 316L stainless steel, it utilizes an imported oxygen-driven diaphragm pump as its power source for positive pressure filtration. The quick-connect piping utilizes sanitary polished fittings and features quick-connect design for easy disassembly and cleaning.



Equipped with a polypropylene microporous filter membrane, it is widely used in the cosmetics industry, research institutes, hospitals, laboratories, and other sectors for convenient and reliable clarification and sterilization of small amounts of liquids, as well as for trace chemical analysis.

Perfume Freezing Filter Machine: Key Features

⦁ Flip cover style
The reversible lid makes it easy to add materials, take samples, observe material status, and clean. It eliminates the need for complex operations and significantly improves process adjustment efficiency.
⦁ Mixing system
Equipped with 1 set of pneumatic stirring and high-power pneumatic motor.
⦁ Low-temperature condensation separation
The low-temperature system composed of a freezer and a refrigeration coil cools the perfume to a specific low-temperature range (usually -5°C to 5°C), allowing soluble organic matter, colloids and microorganisms that cannot be removed by traditional filtration to quickly condense into solid particles.
⦁ Precision graded filtration
Condensed perfume automatically enters the filter, where it is captured in layers by multiple gradient filters (such as 0.22μm precision membranes). The surface layer intercepts large condensate particles, while the deep-layer membrane precisely captures nanoscale residues, thoroughly removing solidified impurities while minimizing the loss of effective fragrance ingredients. Some devices are equipped with a negative pressure generator to further enhance filtration efficiency and impurity retention.
⦁ High-quality materials
The machine is made of stainless steel SUS316L and SUS304, in compliance with GMP standards.
⦁ Customized services
Customize the different functions and configurations of the machine according to customer needs.

Product Details

Perfume Freezing Filter Making Machine Fragrance Making Machine with Cooling Stirring System Perfume Chiller - FULUKE
Perfume Freezing Filter Making Machine Fragrance Making Machine with Cooling Stirring System Perfume Chiller-01 - FULUKE

Machine Specifications

Material High-quality stainless steel SUS316L and SUS304
Pot lid Type

Flip lid type, half of the lid can be opened.

Capacity From 100L to 1000L (Customizable)
Main Components The perfume freezing filter machine is mainly composed of cooling coils, compressors, pneumatic agitators, diaphragm pumps, filters, control system , etc.
Mixing System Stainless steel pneumatic stirring
Filters 2 microporous filters (1 each with filtration accuracy of 5μm and 0.22μm); 1 plate and frame filter (filtration accuracy of 0.1μm); ★Three-stage filtration system.
Brand Danfoss compressor, American SANDPIPER pneumatic diaphragm pump
 Customization Available in various sizes, capacity, designs, function and branding options

General Application

⦁ Perfume, toner, etc.
Perfume Freezing Filter Making Machine Fragrance Making Machine with Cooling Stirring System Perfume Chiller - FULUKE

Machine Advantages

⦁ Customization: Customize the size, capacity, functionality, and design to suit your needs.
⦁ Premium Quality Materials: Ensures durability, protection, and beautiful appearance.
⦁ Configuration brand: Motors, inverters and electrical systems are all high-quality well-known brands.
⦁ Competitive Pricing: Offer competitive pricing based on its unique value and cost structure
⦁ Fast delivery time: Offer fast production and shipping options.

Customization Options

Machine Size - FULUKE
⦁ Machine Size
The size of the machine can be designed and customized according to customer needs.
Machine Capacity - FULUKE
⦁ Machine Capacity
The capacity of the machine can be customized according to the customer's production needs.
Brand - FULUKE
⦁ Brand
Customize configurations of different brands according to customer needs.
Function - FULUKE
⦁ Function
Different functions can be selected according to the customer's production needs.

Packaging & Logistic

⦁ Packing: Wooden box packaging that meets transportation conditions.
⦁ MOQ (Minimum Order Quantity): 1 units per machine.
⦁ Production Time: Different machines have different production times.
⦁ Shipping: Air freight, sea freight, or express delivery options available.

Perfume Freezing Filter Machine Videos

Frequently Asked Questions

Perfume Freezing Filter Making Machine
Does the filtration process cause loss of fragrance components?

High-quality equipment uses a gradient filtration design (such as a 0.22μm precision filter membrane) to capture only condensed impurities and avoid adsorbing active fragrance molecules.

What can you buy from us?

RO Water Treatment、Vacuum Emulsifying Machine、Homogenizer Mixing Tank、Filling and Capping、labeling Machine、Packing Machine、Storage Tank,etc.

Can you customize the machine?

Of course, we provide customized services according to customer needs.

Why does perfume require freeze filtration? Is traditional filtration an alternative?

Traditional filtration only removes visible solid impurities. Soluble organic matter, colloids, and trace microorganisms in perfume are difficult to separate at room temperature, easily leading to turbidity, precipitation, and aroma deterioration after storage. Freeze filtration uses a low-temperature environment of -5°C to -15°C (depending on the formulation) to condense these hidden impurities into solid particles. These particles are then thoroughly trapped through precision filtration, while simultaneously allowing the fragrance components to fully blend. This is a core process that ensures the stability of high-end perfumes.

If the liquid is still turbid after filtration, what could be the cause?

Common causes include: ① Insufficient freezing (low temperature or too short a freezing time); ② Clogged filter element or overly large pore size; ③ Uneven material flow leading to insufficient localized condensation. Solution: Extend the freezing time, replace the 0.1μm precision filter element, check the pipes for blockage, and optimize flow control.

Can you make a design for us?

Yes, we can, we provide not only products, but also solutions and designs.
